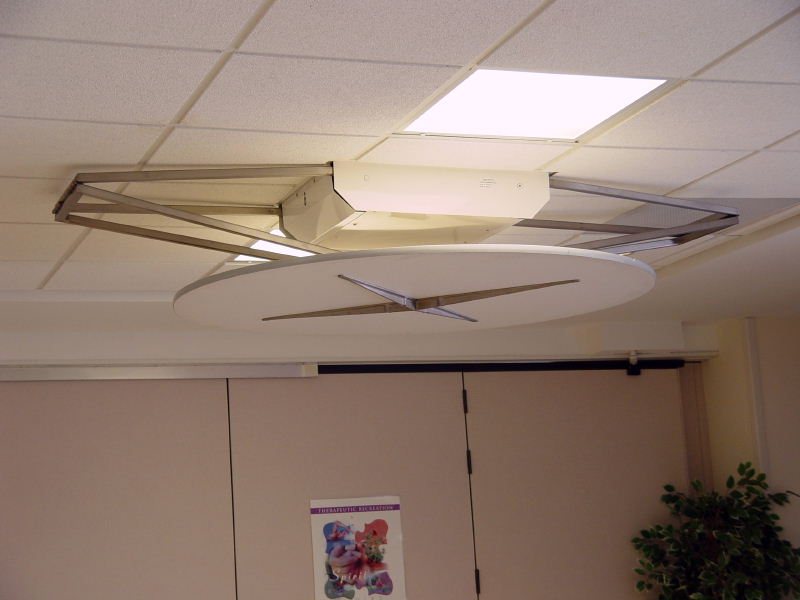

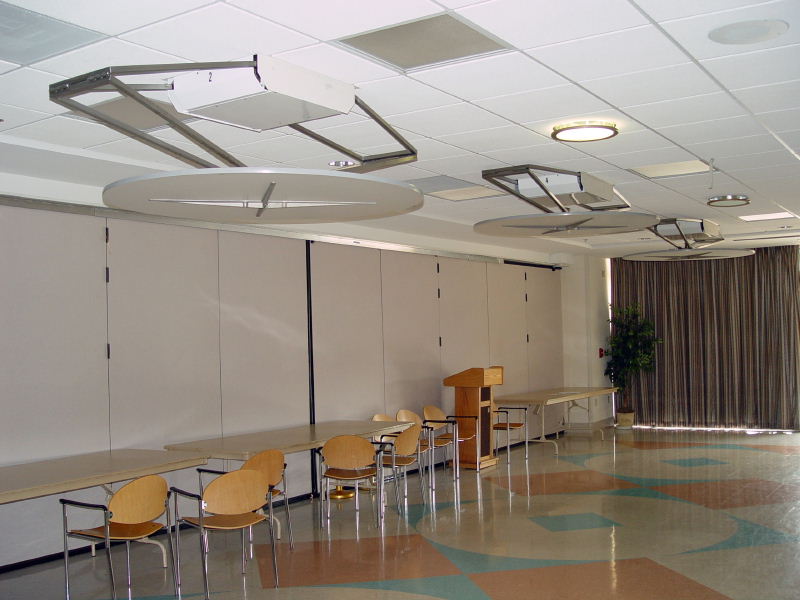

Tables Retracted for Easy Storage

Click on Photos for Larger View

Contact Us

T-fabco Corp. P.O.Box 1436 11550 U.S. Hwy 41 Gibsonton, FL 33534

Watts 877-738-2080 Fax 813-671-1865

E-Mail Us

 Installation

Table units are designed to fit between the standard 24” hung ceiling tracks and they can be supplied with structural support frames for deck, rafter, or bar joist installation support.

A trim flange and mounting kit is available for drywall ceiling installations

A “troffer” frame is available for recessing the table unit into the ceiling. This accessory will provide an additional 8” of floor clearance and it also allows for the installation of 24” x 24” lay-in light fixtures if desired.

Specifications

Electrical Supply: 5 amp, 120 vac, Single Phase, 60 hz

Weight Support requirements 195 lbs.

Two-year parts and labor warranty.

Controls

Individual “UP/DOWN” SPDT momentary contact (Pass & Seymour # 1205 or equiv. By others).

(Optional)  Electric Key switch - This lock-out control is suggested in areas where staff control of the tables is necessary.

Models & Accessories

AF 1000E- Ceiling Suspended table assembly with 60” diameter table top, stainless steel support arms and high-pressure laminate table top.

RMF3024-4-  Recessed Mounting Frame with Trim Flange for drywall (GWB) ceiling.

RMF9624-F - Recessed mounting frame for lights.

SMF1000 -  Structural Mounting Frame for deck or welding to bar joist.
